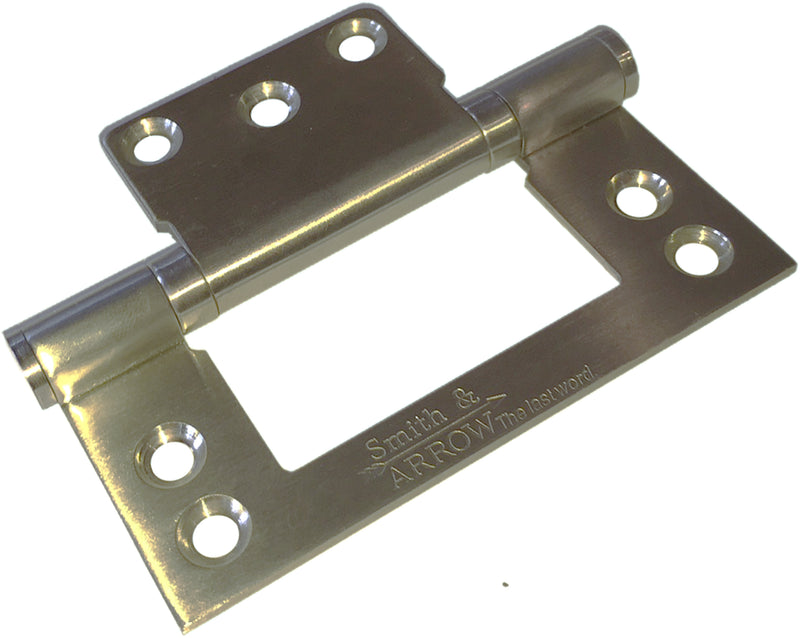

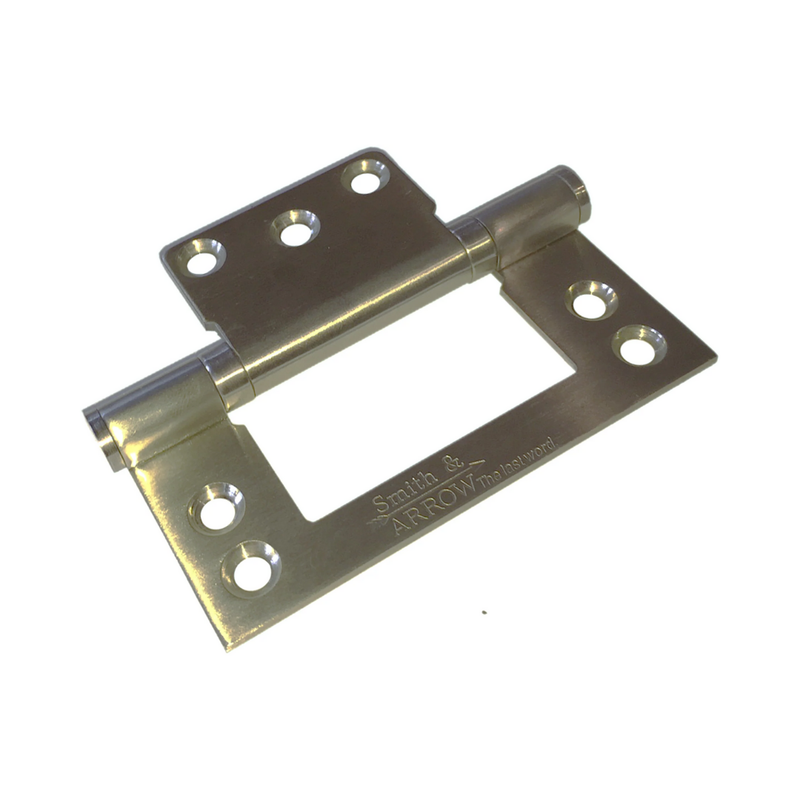

4", 101.6mm Door Hinges, Hirline Non Mortice Butt - Stainless or Black
4", 101.6mm Door Hinges, Hirline Non Mortice Butt - Stainless or Black
4", 101.6mm Door Hinges, Hirline Non Mortice Butt - Stainless or Black
4", 101.6mm Door Hinges, Hirline Non Mortice Butt - Stainless or Black

4", 101.6mm Door Hinges, Hirline Non Mortice Butt - Stainless or Black

by Smith & ARROW
$8.95 - $144.95
$9.95
$8.95 - $144.95
$9.95

- Each hinge is built around two hardened stainless steel ball bearing pivot points and is designed to last a lifetime.
- No-mortise hinges are thinner than standard hinges, which limits the gap on the doors of cabinets.
- No-mortise hinges leave only a small space between doors or the door and frame.
- Constructed from stainless steel materials to be able to withstand many types of harsh environmental conditions.

Specifications

Choose Quantity: 1 / 12 / 36 Hinges (with screws)

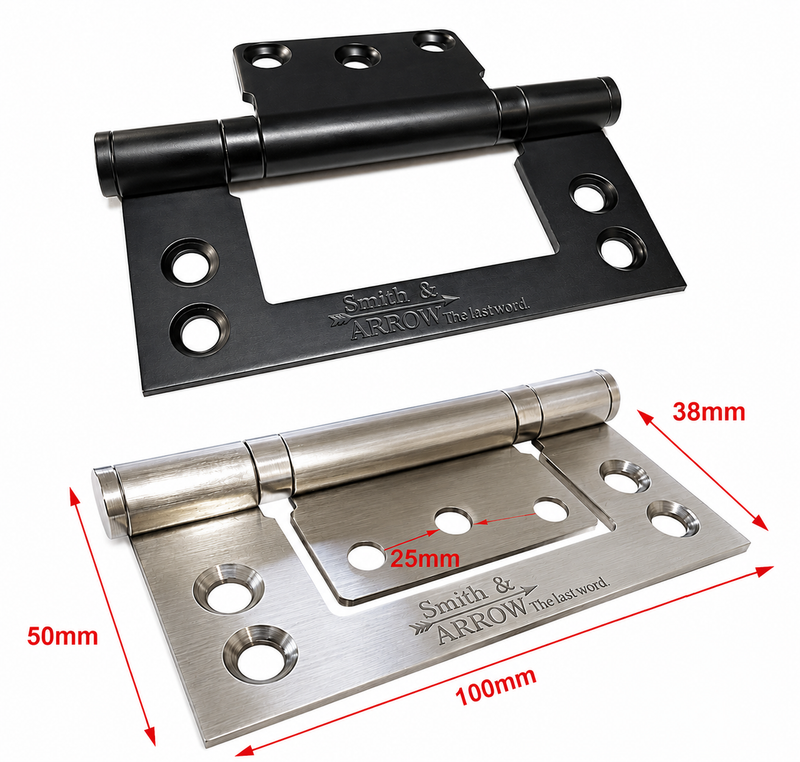

Size Open: 101.6mm x 76mm x 2.5mm
Size Closed: 101.6mm x 51mm x 2.5mm
Choose Finish from Drop Down Menu:

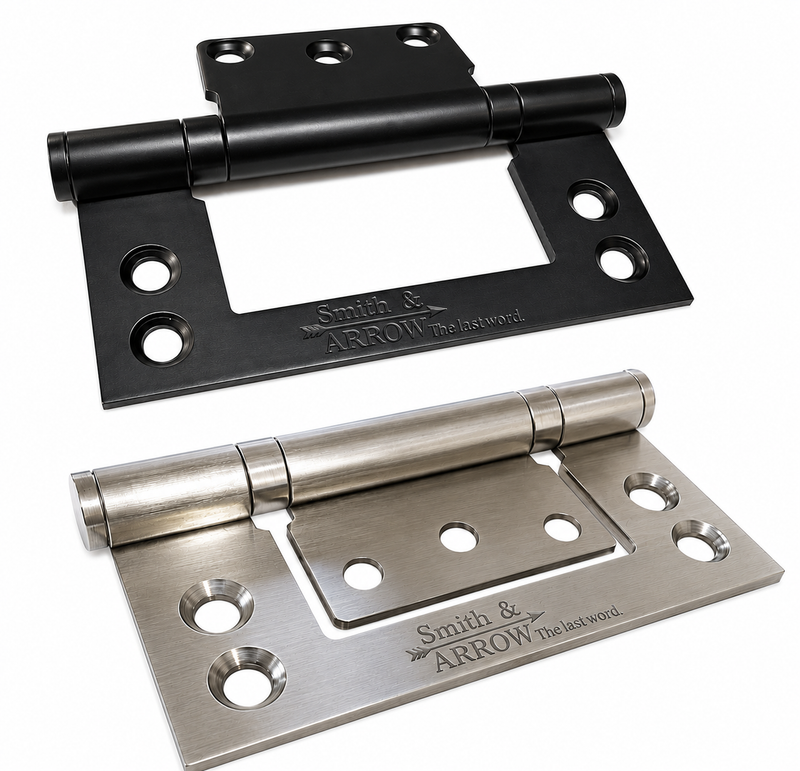

Brushed Stainless or Electroplated Black
Each hinge includes 7 x 304 SS P2 Screws (30mm x 4mm)
So there are 84 x P2 screws included in a Box of 12
Prices:

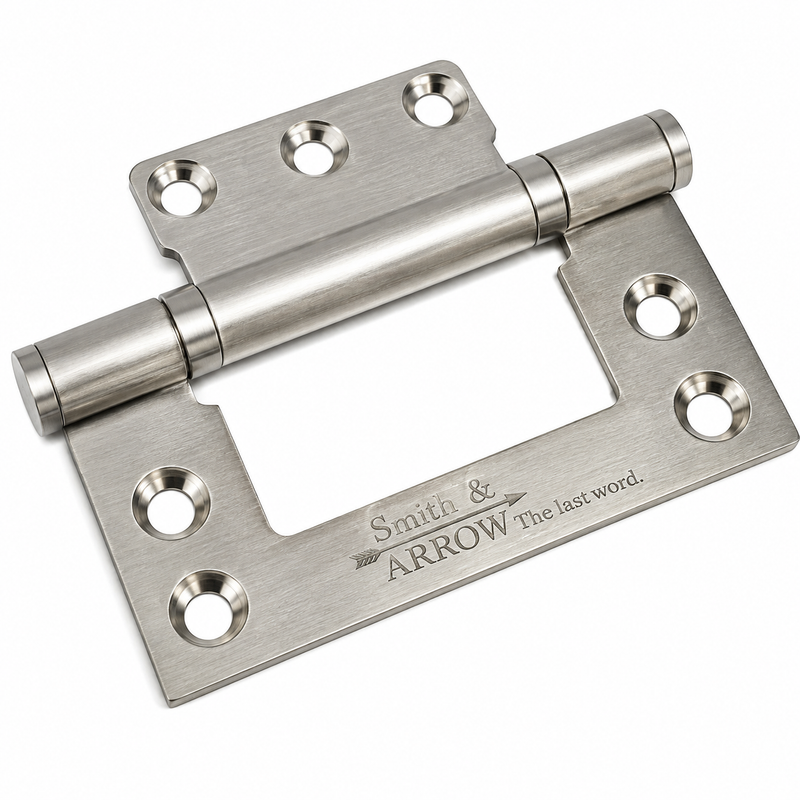

Brushed Stainless:
Box 12 = $3.75 per hinge
Box 36 = $3.33 per hinge

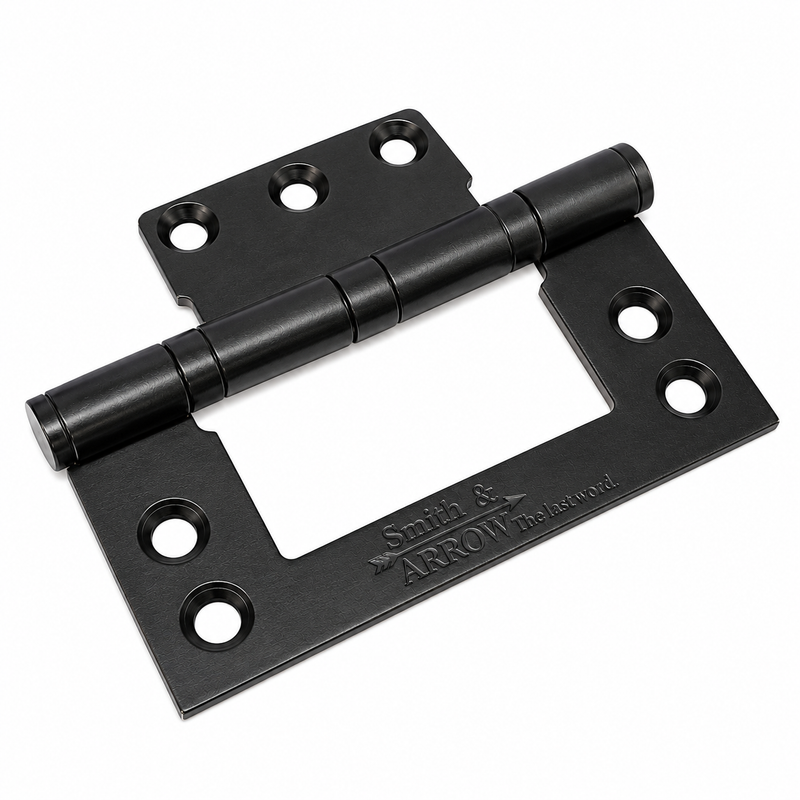

Electroplated Satin Black:
Box 12 = $4.58 per hinge
Box 36 = $4.17 per hinge
Material: 304 Stainless Steel
Type: Hirline, non-mortice
Non Mortice: Yes
Pivot Points: Two hardened stainless steel ball bearing pivot points
Packaging: Each hinge is packaged separately.
