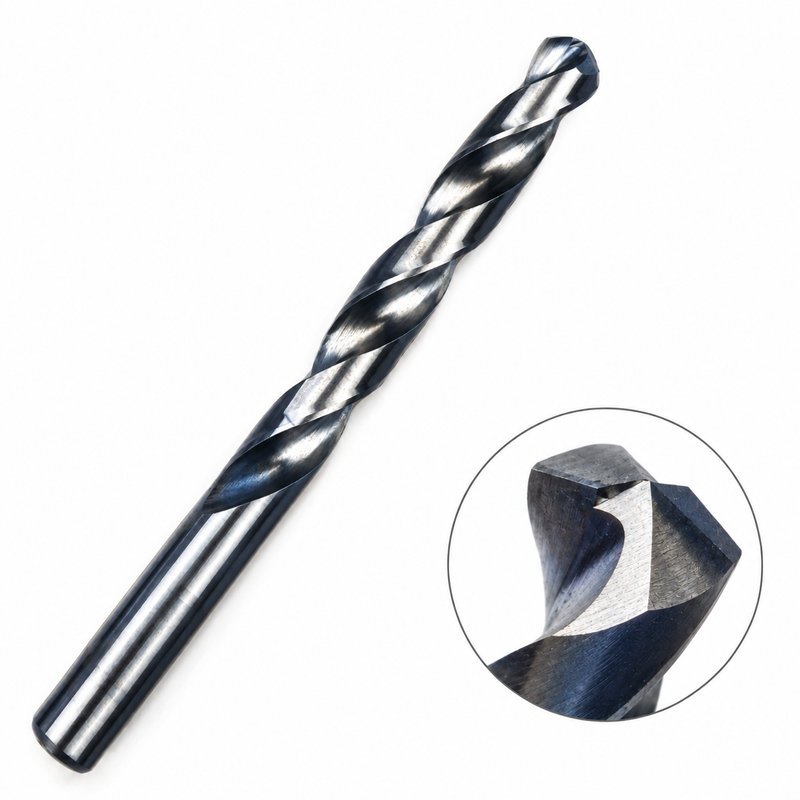

HSS TWIST IMPERIAL METAL DRILL BITS, M2 (JOBBER BITS)

Quantity: 1 x Bit
Material: M2 HSS (High Speed Steel)
Fully Ground: Yes
Intended Use: Steel, all metal, aluminium, brass and plastic. For drilling stainless steel use M35 bits on slow speed. See our shop for M35 bits.
Split Point: 135° Split Point
Type: Single Ended
Measurement: Imperial
Machine: Drill
Choose: 1/8" 3/64″, 1/16″, 5/64″, 3/32″, 7/64″, 1/8″, 9/64″,
5/32″, 11/64″, 3/16″, 13/64″, 7/32″, 15/64″, 1/4″, 17/64″,
9/32″, 19/64″, 5/16″, 21/64″, 11/32″, 23/64″, 3/8″, 25/64″,
13/32″, 27/64″, 7/16″, 29/64″, 15/32″, 31/64″, 1/2″

DIMENSIONS:
Diameter-Length-Flute
3/64"-1-3/4"-3/4"
1/16"-1-7/8"-7/8"
5/64"-2"-1"
3/32"-2-1/4"-1-1/4"
7/64"-2-5/8"-1-1/2"
1/8"-2-3/4"-1-5/8"
9/64"-2-7/8"-1-3/4"
5/32"-3-1/8"-2"
11/64"-3-1/4"-2-1/8"
3/16"-3-1/2"-2-5/16"
13/64"-3-5/8"-2-7/16"
7/32"-3-3/4"-2-1/2"
15/64"-3-7/8"-2-5/8"
1/4"-4"-2-3/4"
17/64"-4-1/8"-2-7/8"
9/32"-4-1/4"-2-15/16"
19/64"-4-3/8"-3-1/16"
5/16"-4-1/2"-3-3/16"
21/64"-4-5/8"-3-5/16"
11/32"-4-3/4"-3-7/16"
23/64"-4-7/8"-3-1/2"
3/8"-5"-3-5/8"
25/64"-5-1/8"-3-3/4"
13/32"-5-1/4"-3-7/8"
27/64"- 5-3/8"-3-15/16"
7/16"-5-1/2"-4-1/16"
29/64"-5-5/8"-4-3/16"
15/32"-5-3/4"-4-5/16"
